Protection By Application

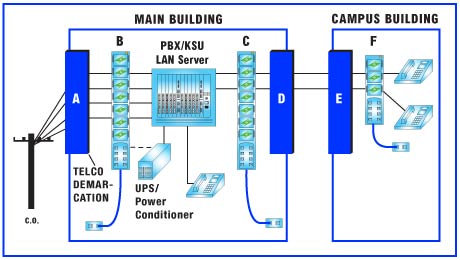

LOCATION A:
T1 / ISDN – Modular :CAT5-75 (1 per ea. line)
5-Pin Protector: FPP4-75 (1 per ea. pair)
ANALOG – Modular : CAT5-235 (1 per ea. line)
66 Block : UP3B-235 (1 per ea. pair)
5-Pin : FPP4-235 (1 per ea. pair)
CATEGORY 6 – Modular : CAT6-235 (1 per ea. line)
LOCATION B:
T1 LINE – Modular : CAT5-75 or MLLT1 (1 per ea. line)
66 Block : UP3H-75 (1 per ea. pair)
AC : M8COM (8 protected outlets)
CO LINE – Modular : MCO4X4 (1 per 4 lines) or MCO25 (1 per 25 lines)
66 Block : UP3P-235 or UP3B-235 (1 per ea. pair)
AC : M8COM (8 protected outlets)
LOCATION C:
DIGITAL –
Modular : MDS2 (1 per 2 pairs) or MDS25 (1 per 25 pairs)
66 Block : UP3P-75 or UP3H-75 (1 per ea. pair)
AC : M8KSU (8 protected outlets) or M4KSU (4 protected outlets)
ANALOG –
Modular : MCO4X4 (1 per 4 lines) or MCO25 (1 per 25 lines)
66 Block : UP3P-235 or UP3B-235 (1 per ea. pair)
LOCATION D:
T1 / ISDN – Modular : CAT5-75 (1 per ea. line)
5-Pin : FPP4-75 (1 per ea. pair)
ANALOG – Modular : CAT5-235 (1 per ea. line)
66 Block : UP3B-235 (1 per ea. pair)
5-Pin : FPP4-235 (1 per ea. pair)
DIGITAL / LAN – Modular : CAT5-XXX (1 per ea. line)
CATEGORY 6 – Modular : CAT6-XXX (1 per ea. line)
LOCATION E:
T1 / ISDN Modular : CAT5-75 (1 per ea. line)
5-Pin : FPP4-75 (1 per ea. pair)
ANALOG – Modular : CAT5-235 (1 per ea. line)
66 Block : UP3B-235 (1 per ea. pair)
5 Pin : FPP4-235 (1 per ea. pair)
DIGITAL / LAN – Modular : CAT5-XXX (1 per ea. line)
CATEGORY 6 – Modular : CAT6-XXX (1 per ea. line)
LOCATION F:
DIGITAL – Modular : MDS2 (1 per 2 pairs) or MDS25 (1 per 25 pairs)
66 Block : UP3P-75 or UP3H-75 (1 per ea. pair)
AC : M8KSU (8 protected outlets) or M4KSU (4 protected outlets)
ANALOG – Modular : MCO4X4 (1 per 4 lines) or MCO25 (1 per 25 lines)
66 Block : UP3P-235 or UP3B-235 (1 per ea. pair)

ACCESSORIES / OPTIONS:

Use (1) M8KSU for 8 lines of AC protection and to provide a single point ground for all modular protection.

CAT6-XXX = choose an available clamping voltage which matches your application, CAT6-16, CAT6-POE, CAT6-75, CAT6-235

The UP3 protectors need: (1) split 66-Block, (1) MGB-SGL for every 25 pairs.

Note: The installation provided by Telco at the demarcation point is typically Gas Tubes and used to meet NEC article 800. This protection is for safety and not for equipment protection. To learn more, read the two articles on our website WHY CHOOSE SOLID-STATE OVER GAS-TUBE? or SURGE PROTECTION TECHNOLOGY 101.
