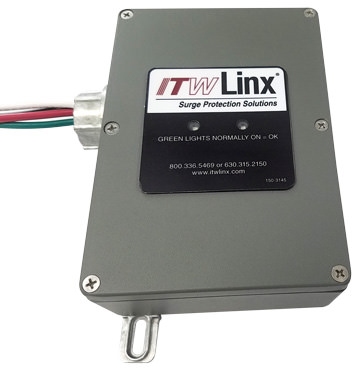

Type 2 Hardwired surge protective device targeted to protect AC powered and connected equipment and systems from the destructive force of surges.


  • Service entrance, branch and OEM panels
  • Electrical Systems and Equipment
  • Protection from lightning, Induction and AC Infrastructure generated Surges
  • Indoor and Outdoor Equipment
  • Security, Industrial and Telecommunication Systems
  • Other commercial applications



  • Electrical Distribution System: 120/240VAC Single Phase 3W+G
  • Nominal (Operating) Voltage: 120VAC L-G, N-G 240VAC L – L
  • Maximum Operating Voltage (MCOV): 150VAC L-G, N-G 300VAC L - L
  • Nominal Discharge Current 8/20us (In): 20KA
  • Maximum Discharge Current 8/20us (Imax): 100KA
  • Modes of Protection: L1-L2, L1-G, L2-G, N-G
  • Internal Thermal Disconnect: Yes
  • Operating Frequency: 50/60Hz
  • Short Circuit Current Rating (Sccr): 65KA


  • Enclosure: Type 4 Aluminum
  • Environmental Rating: IP 66 / NEMA 4x
  • Operating Temperature: -40°C to +80°C
  • Operating Humidity: 0 to 95% non-condensing
  • Mounting: Wall
  • Mechanical Connection to Panel: Conduit Nut
  • Enclosure Dimension (L x W x H): 5.64” x 9.10” x 2.33”
  • Weight: 4.0 lbs
  • Electrical Connection: 10 AWG stranded wiring leads, 14 inches max. length
  • Diagnostics and Status: Green LED ON


  • Compact design for convenient and effective Surge Protection
  • Thermal fused metal oxide varistor (MOV)protection technology
  • Common Mode Surge protection
  • Heavy duty surge protection
  • LED “ON” for visual protection status monitoring
  • Indoor or outdoor installation
  • EMI and RFI filtering
  • UL1449 4th Edition Listed
