CAT6-LAN-MM

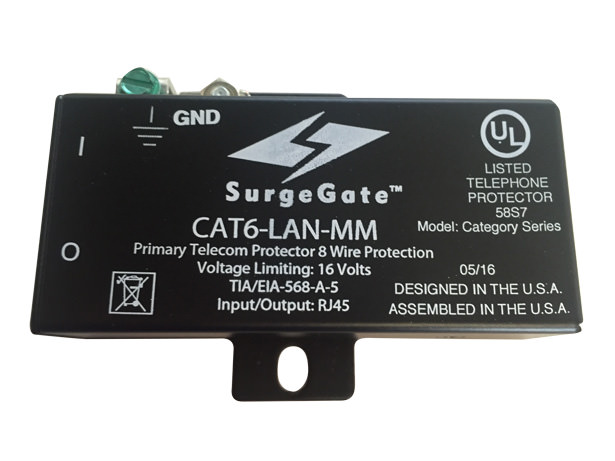

CAT6-LAN-MM Ethernet Surge Protector

Exceeds TIA/EIA Standards 568 and 758 for CAT 5e and CAT 6 performance

Suggested Applications Include: Protects CAT6 OSP or UTP cable for LAN, VOIP, Wireless Access Points

TECHNICAL SPECIFICATIONS

Agency Approval UL Listed
Grounding Requirements Field installed solid copper wire; #6 AWG for Primary; #14 AWG for Isolated Loop
Recommended Grounding Impedance <0.5 0hm
Height/Width/Depth 1” / 2 ¾" / 3 ¾"
Weight w/o Modules n/a
Product Warranty 5 years
Connected Equipment Warranty Up to $5,000

UL Listed
Exceeds TIA/EIA Standards 568 and 758 for CAT 6 performance
Solid-state protection provides the fastest response to transient voltages (1-5 nanoseconds) by quickly diverting damaging surges to ground
Use between buildings in a campus environment as a building entrance protector or in hostile industrial applications as an isolated loop protector
RJ45 input to RJ45 output
Suggested Applications Include: security cameras, phone systems, Ethernet & VOIP
