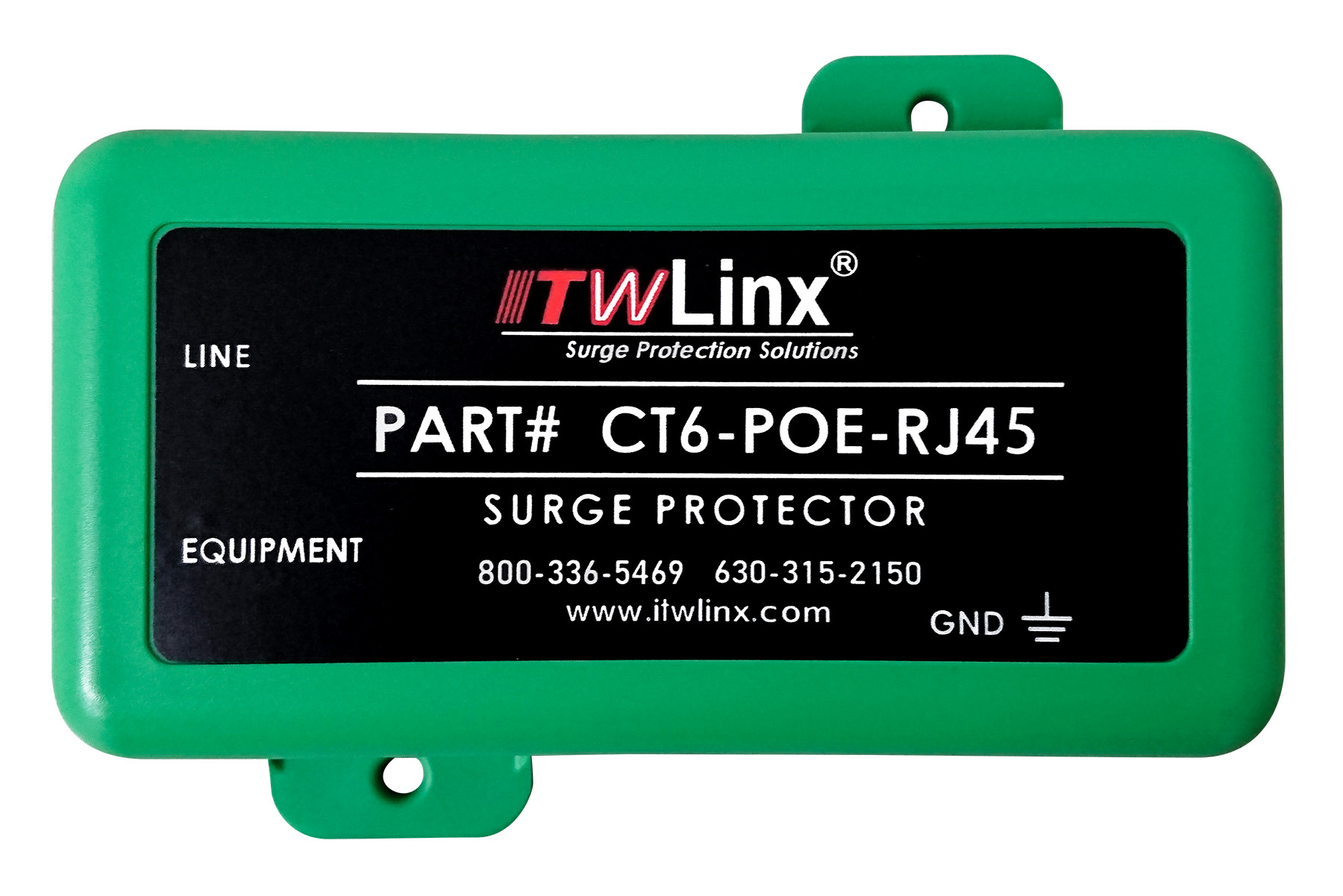

CT6-POE-RJ45

AHW120/240-25-H1 Hardwired Surge Protection



The CT6-POE-RJ45 is a point of use surge protector, and can be installed at the equipment end, or ahead of POE injectors and mid-span devices.

Applications:

  • Protection for high power (PoE) (PoE+) (POE++/UPOE) applications
  • Camera, wireless access point, building-to-building protection
  • Protection from lightning, Induction and AC Infrastructure Generated Surges
  • Indoor Equipment
  • Light-Industrial and Telecommunications systems
  • Other commercial applications
Specification Sheet Product Installation Instructions

ELECTRICAL CHARACTERISTICS:

  • (POE) (POE+) (POE++/UPOE) Capable: Yes
  • Category/Signal: CAT6
  • Voltage Clamping Level: 75VDC
  • Balanced Over Voltage: Yes
  • Modes of Protection: Across all pairs and ground
  • Surge Response Time: <5 Nanoseconds
  • Capacitance: <5 pF
  • Capacitive Imbalance: <1 pF
  • Max Continuous Current: 1.5 Amps (per pair)

MECHANICAL CHARACTERISTICS:

  • Enclosure: Model ABS V0
  • Environmental Rating: Indoors
  • Operating Temperature: -40°C to +65°C
  • Operating Humidity: 0 to 95% non-condensing
  • Mounting: Surface
  • Connection Method: RJ45 Jack In and Out
  • Enclosure Dimension (L x W x H): 4.0" x 2.0" x 1.24"
  • Weight: 0.5 lbs
  • Grounding Connection: Integrated Screw Terminal
  • Compact design for convenient and effective surge protection
  • Solid state technology
  • Balanced signal protection ensures unobstructed pass though signal integrity
  • RJ45 In/Out connections
  • Side by Side installation capability minimizes space and enhances grounding
  • Exceeds TIA/EIA Standards 568 and 758 for CAT6 Signal performance
  • UL listed 497 and 497B
  • Integrated Grounding Screw
