AHW120/240-25-H1

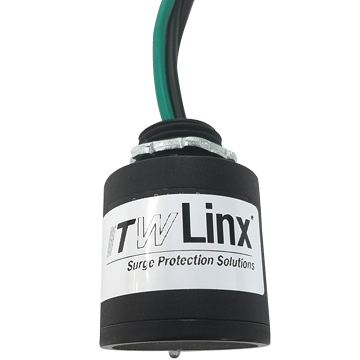

AHW120/240-25-H1 Hardwired Surge Protection

Type 1 Hybrid surge protective device targeted to protect AC powered and connected equipment and systems from the destructive force of surges.

Applications:

Service entrance, branch and OEM panels
Electrical Systems and Equipment
Protection from lightning, Induction and AC Infrastructure generated Surges
Indoor and Outdoor Equipment
Security, Industrial and Telecommunication Systems

Downloads

Specification Sheet Product Installation Instructions

Specifications
Features

TECHNICAL SPECIFICATIONS

ELECTRICAL CHARACTERISTICS:

Electrical Distribution System: 120/240VAC Single Phase
Nominal (Operating) Voltage: 120VAC L-G 240VAC L-L
Maximum Operating Voltage (MCOV): 150VAC L-G 300VAC L-L
Nominal Discharge Current 8/20us (In): 10KA
Maximum Discharge Current 8/20us (Imax): 25KA
Modes of Protection: L1-L2, L1-G, L2-G
Internal Thermal Disconnect: Yes
Operating Frequency: 50/60Hz
Short Circuit Current Rating (Sccr): 200KA

MECHANICAL CHARACTERISTICS:

Enclosure: Non Metallic
Environmental Rating: IP 66 / NEMA 4x
Operating Temperature: -40°C to +85°C
Operating Humidity: 0 to 95% non-condensing
Mounting: Straight ½” Nipple
Mechanical Connection to Panel: Conduit Nut
Flat Service Mounting: Convenient Bracket
Weight: 1 lbs
Electrical Connection: 14 AWG stranded wiring leads, 14 inches max. length
Diagnostics and Status: Green LED ON

FEATURES

Compact design for convenient and effective Surge Protection
Thermal fused metal oxide varistor (MOV)protection technology
Common Mode Surge protection
Heavy duty surge protection
LED “ON” for visual protection status monitoring
Indoor or outdoor installation
UL1449 4th Edition Listed
